Led Gas Price Sign Instruction

RF Remote Instruction of Led Gas Price Signs /strong>

Note: 1.Before you operating, please press (button 8)

         2. Press the button not too fast.

RF Remote Instruction of Modify Digit:

  Step 1: Under the display working, press（button 3) and the first digit will begin to flash.

  Step 2: Press（button 1), the flash digit will INCREASE by one.

              Press（button 2), the flash digit will DECREASE by one.

  Step 3: Press（button 4), the flash digit will shift to the next digit on the RIGHT.

            Press（button 3), the flash digit will shift to the next digit on the LEFT.

  Step 4: Press (button 5) to switch the digit.

  Step 5: Press (button 6) to switch the dot.

  Step 6: Press (button 7) to EXIT without saving.

  Step 7: Press (button 8) to EXIT with saving.

RF Remote Instruction of Setting Brightness:

  Step 1: Under the display working, press (button 5), all digits will begin to flash.

  Step 2: Press (button 1), the sign become brighter; Press (button 2), the price sign become darker; "A” means auto brightness by CDS sensor.

  Step 3: Press (button 7) to EXIT without saving.

  Step 4: Press (button 8) to EXIT with saving.

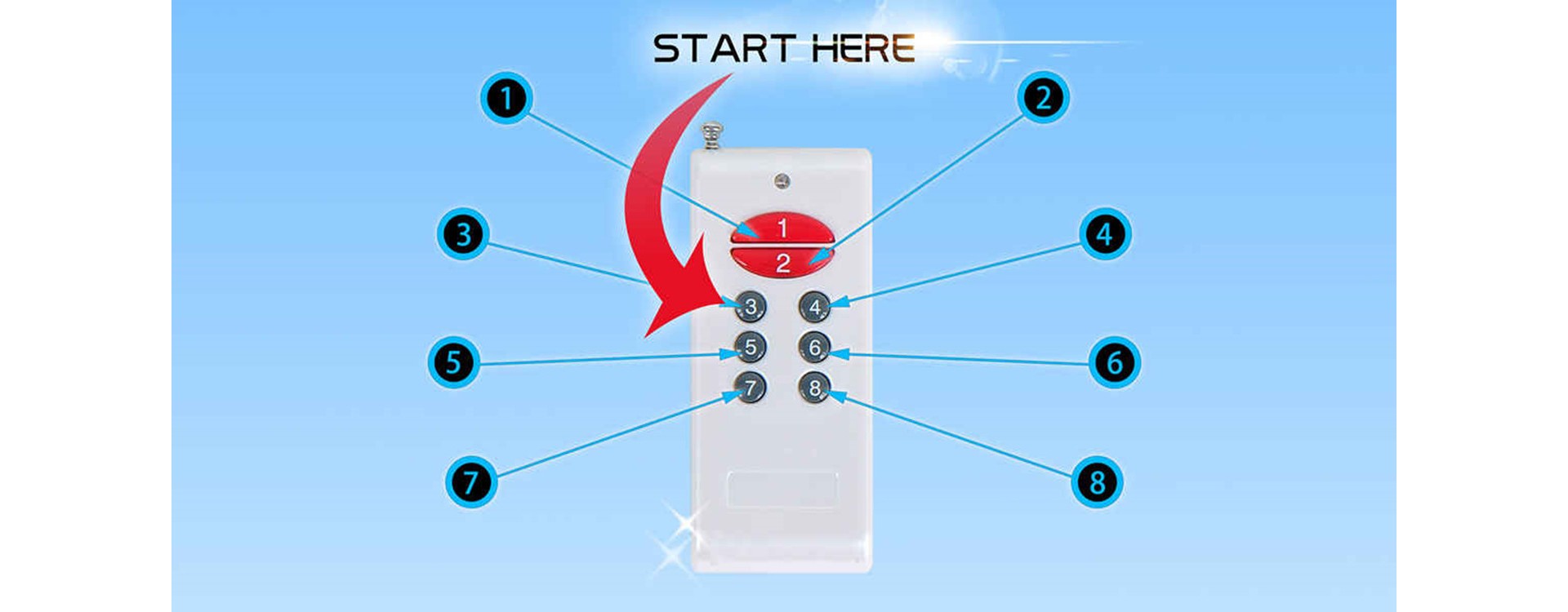

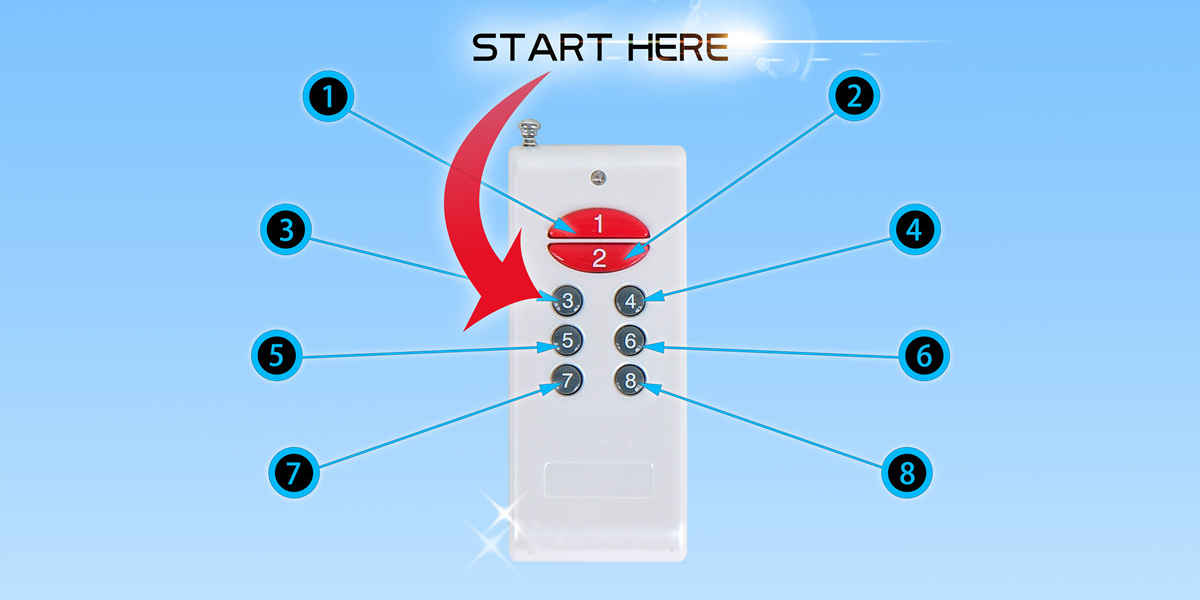

Function of Button:

  1. Digit-Up - (button 1): INCREASE by one.

  2. Digit-Down-(button 2) : DECREASE by one.

  3. Edit-(button 3):

    Press one time to enter EDIT mode, and the first digit will begin to flash.

    In EDIT mode：Press (button 3), the flash digit will shift to the next digit on the LEFT.

  4. Shift-Right-(button 4):

    The flash digit will shift to the next digit on the RIGHT, for each individual price signs.

  5.Setting Brightness- (button 5) :Press (button 5) to enter SET BRIGHTNESS mode and all digits will begin to flash.In EDIT mode：Press (button 5), switch the digit

  6. Switch-dot (button 6):In EDIT model, press (button 6) to switch the dot.

  7. Exit-(button 7): Press (button 7) to EXIT without saving.

  8.Confirm - (button 8): Press (button 8) to EXIT with saving.

 Thank you for using our led gas price signs!
